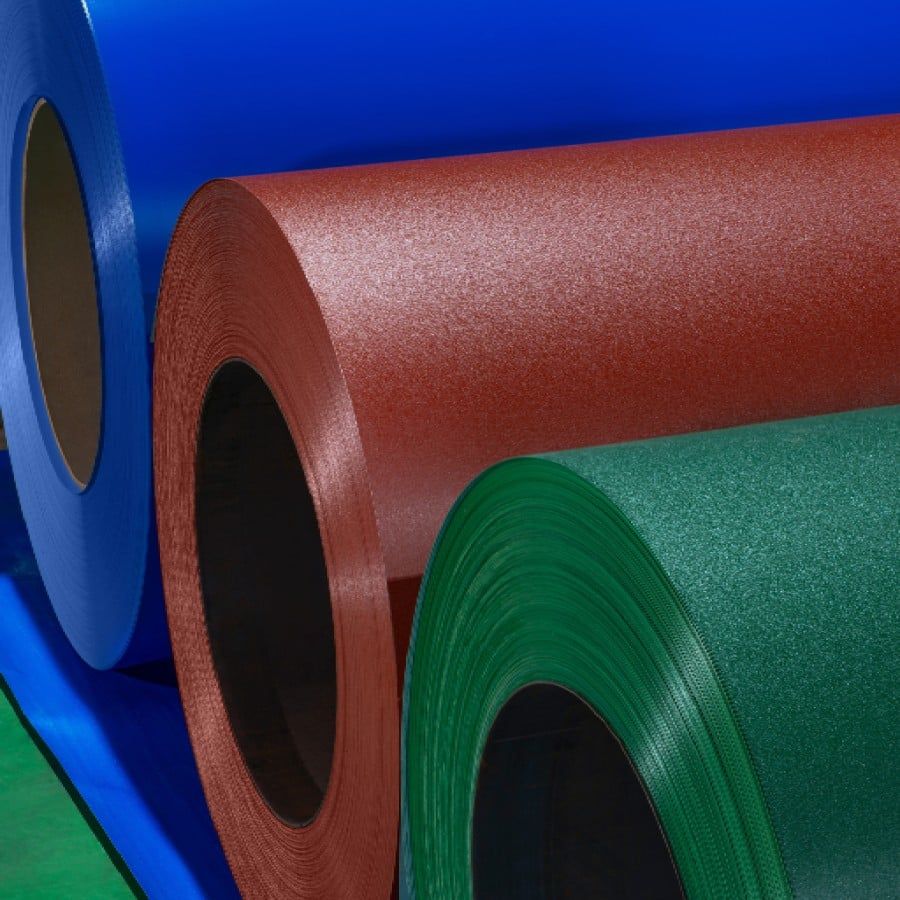

1. Product Description
Pre-painted Zinc-Aluminum-Magnesium (PPZM) is a premium color coated steel product with a base layer of GLMAG alloy coating. The GLMAG coating consists of zinc (Zn), aluminum (Al), and magnesium (Mg) in an optimal ratio, significantly enhancing corrosion resistance and extending product lifespan compared to traditional coated steel such as GI or GL. After coating, the steel is further treated with high quality paint to improve aesthetics and durability.
2. Key Differences & Outstanding Advantages
- Superior Corrosion Resistance:
+ The Zn-Al-Mg coating forms an ultra-durable protective layer, enabling PPZM to resist oxidation and rust, especially in marine, chemical, and humid environments.
+ Self-healing capability at cut edges and drill holes reduces the risk of rust formation.
- Longer lifespan than PPGI & PPGL:
PPZM offers 5-7 times higher corrosion resistance than PPGI and 2-4 times higher than PPGL.
- Higher Strength & Hardness: Magnesium enhances adhesion and surface hardness, reducing scratches during processing and transportation.
- Lower Maintenance Costs: Minimal degradation in harsh environments reduces the need for replacement and maintenance compared to traditional coated steel.
3. Technical Specifications
Steel Strength: G350 - G550
Width Options: 762mm - 1250mm
Thickness Range: 0.20 - 0.80 mm
Standard Thickness:
APT: 0.30, 0.35, 0.40, 0.45, 0.50 (mm)
BMT: 0.28, 0.33, 0.38, 0.43, 0.48 (mm)
Coating Weight: AZM50 - AZM275 (g/m²)
Paint System: Polyester, Super Polyester, PVDF
Standards: JIS G3323 (Japan), ASTM A1046/A1046M (USA), EN 10346 (Europe)

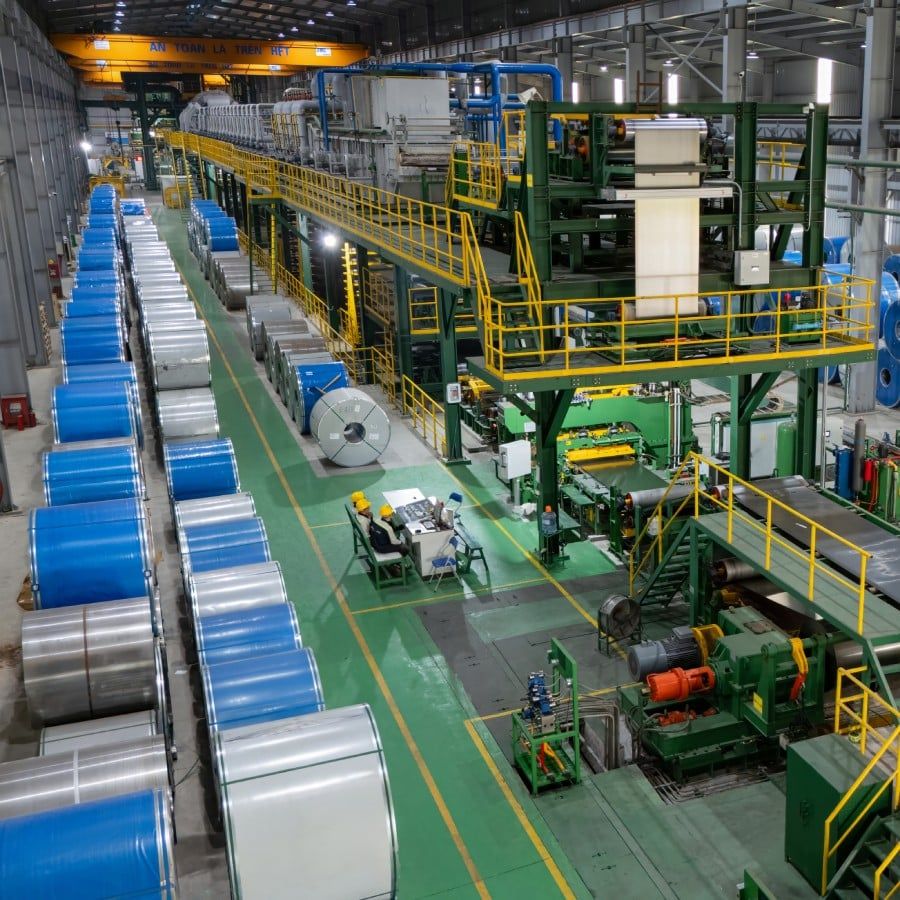

4. PPZM Production Process
1️⃣ Surface Treatment: The ZM steel coil is degreased and cleaned.
2️⃣ Primer painting: A primer layer is applied to enhance adhesion.
3️⃣ Top paint: The main color painting is applied.
4️⃣ Baking & Cooling: The oven ensures firm adhesion and full drying.
5️⃣ Quality Inspection: Thickness measurement, adhesion, and corrosion resistance testing.
6️⃣ Coiling & Packaging: The final product is rolled, inspected, and prepared for shipment.
5. Applications

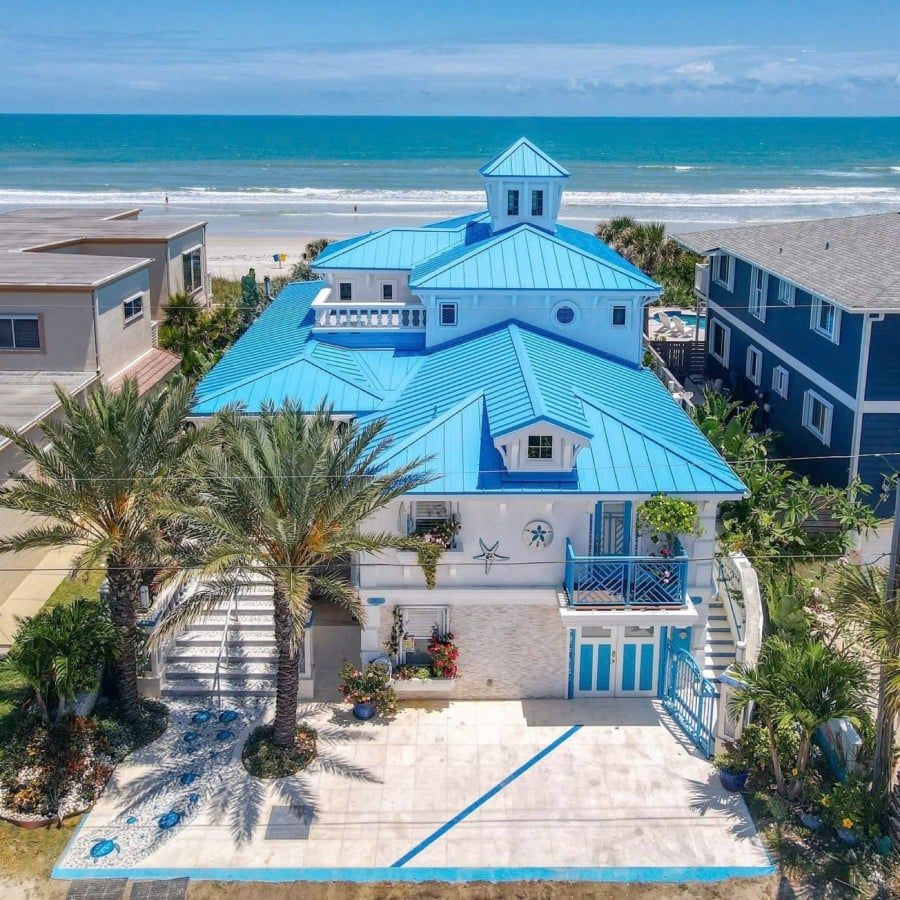

✅ Roofing & Cladding Systems for coastal and high-humidity environments.
✅ Industrial & Factory Buildings in corrosive conditions.
